• Blue Sea 7615 ATD Automatic Timer Disconnect 7615
  • Blue Sea 7615 ATD Automatic Timer Disconnect 7615
1 2

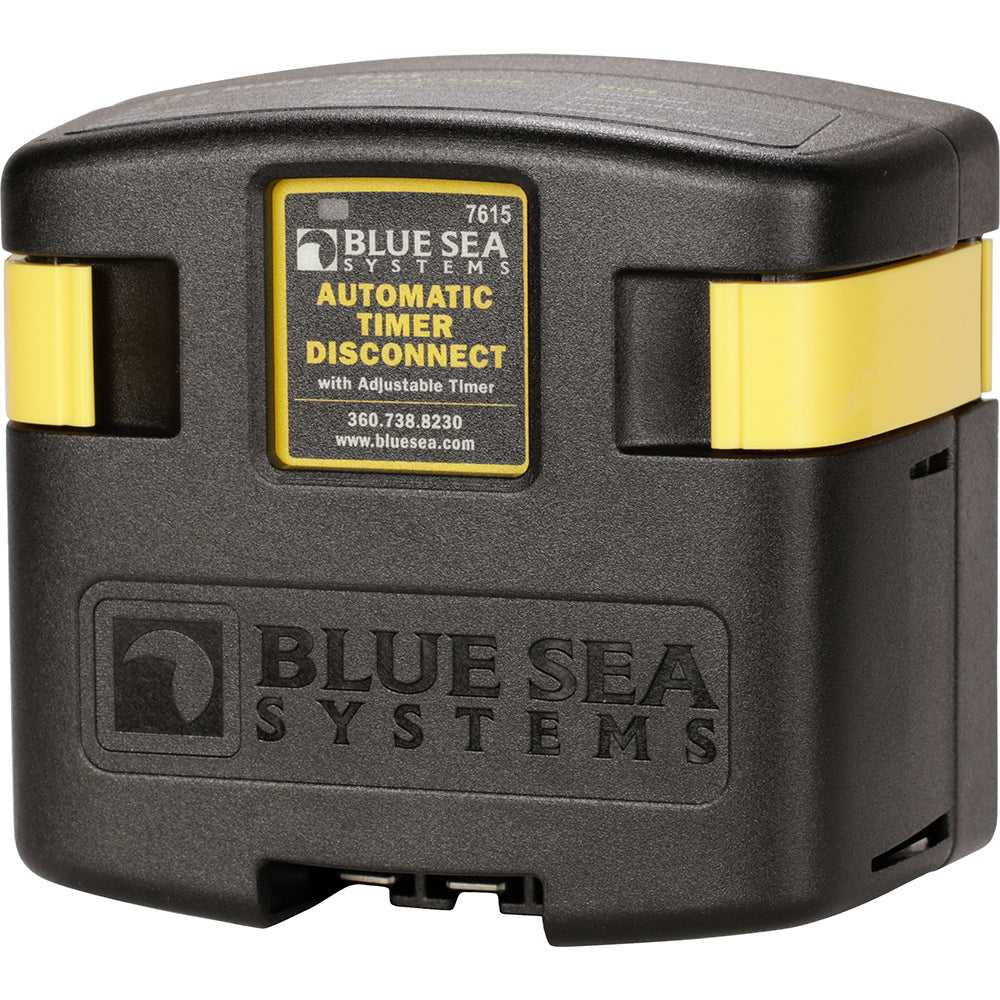

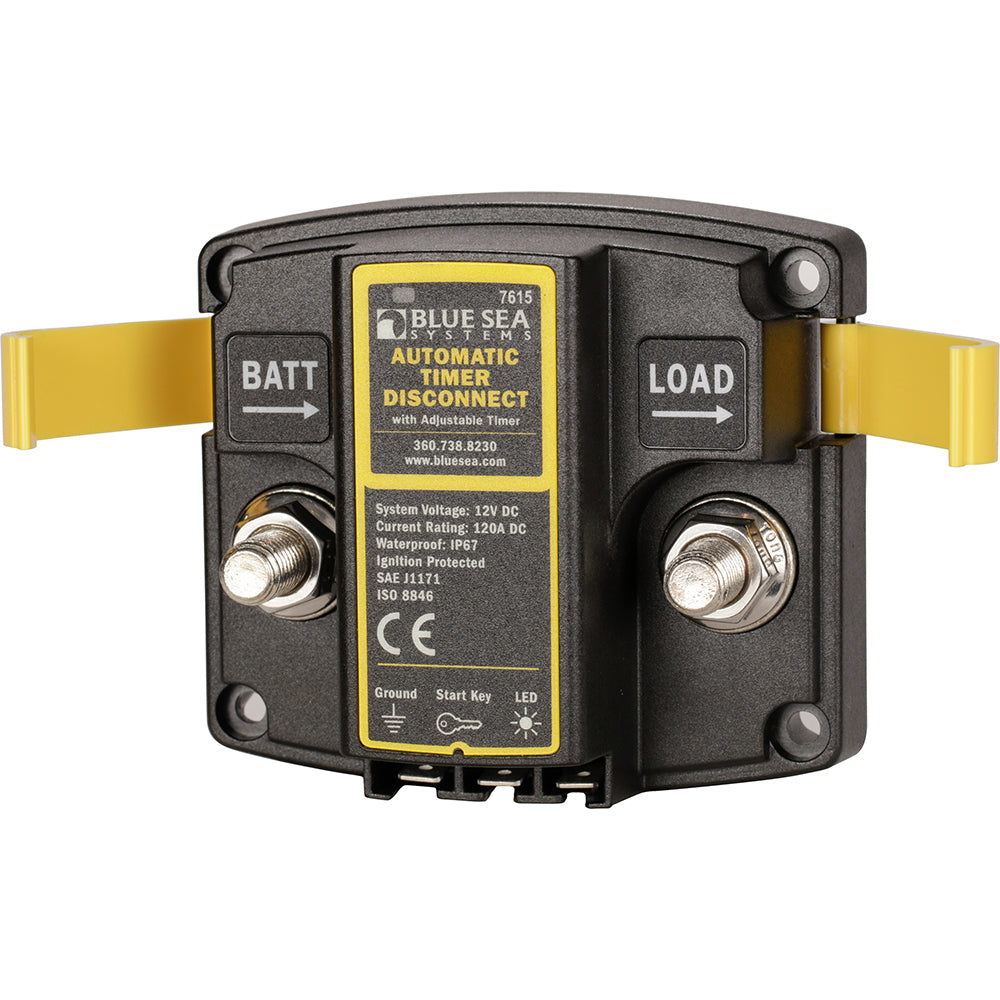

Blue Sea 7615 ATD Automatic Timer Disconnect [7615]

Blue Sea 7615 ATD Automatic Timer Disconnect [7615]

$124.99
$204.99 $124.99
Sold out
Shipping calculated at checkout.
22 people are viewing this right now

Availability: Low stock: 3 left
SKU: LMS-64363
Vendor: Blue Sea Systems
Category: Battery Management

Shipping & Returns

We offer fast, reliable shipping for all your marine supply needs. Orders will ship the same day, Monday-Friday if placed before 4 pm EST.

Your satisfaction is our priority! We accept returns on most items in new, unused condition within 30 days of delivery.

View full product details

ATD Automatic Timer Disconnect

Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power

  • 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
  • Disconnect can be triggered based on time, low voltage, or removal of 12V signal
  • Low voltage will disconnect if time hasn_t been reached to preserve battery power
  • Time and voltage options can be turned off to allow 12V signal based disconnect
  • Clip-on cover insulates terminal connections
  • One-piece stainless flange nuts ensure safe and secure connections
  • Integrated LED indicates status


Specifications:
  • Nominal Voltage:12V DC
  • Amperage Operating Current: 175mA(Combine / 15mA(Open)
  • Continuous Rating:120A
  • Intermittent Duty: 210
  • Terminal Stud Size: 3/8"-16 (M10)
  • Time Range: 15min-4hrs
