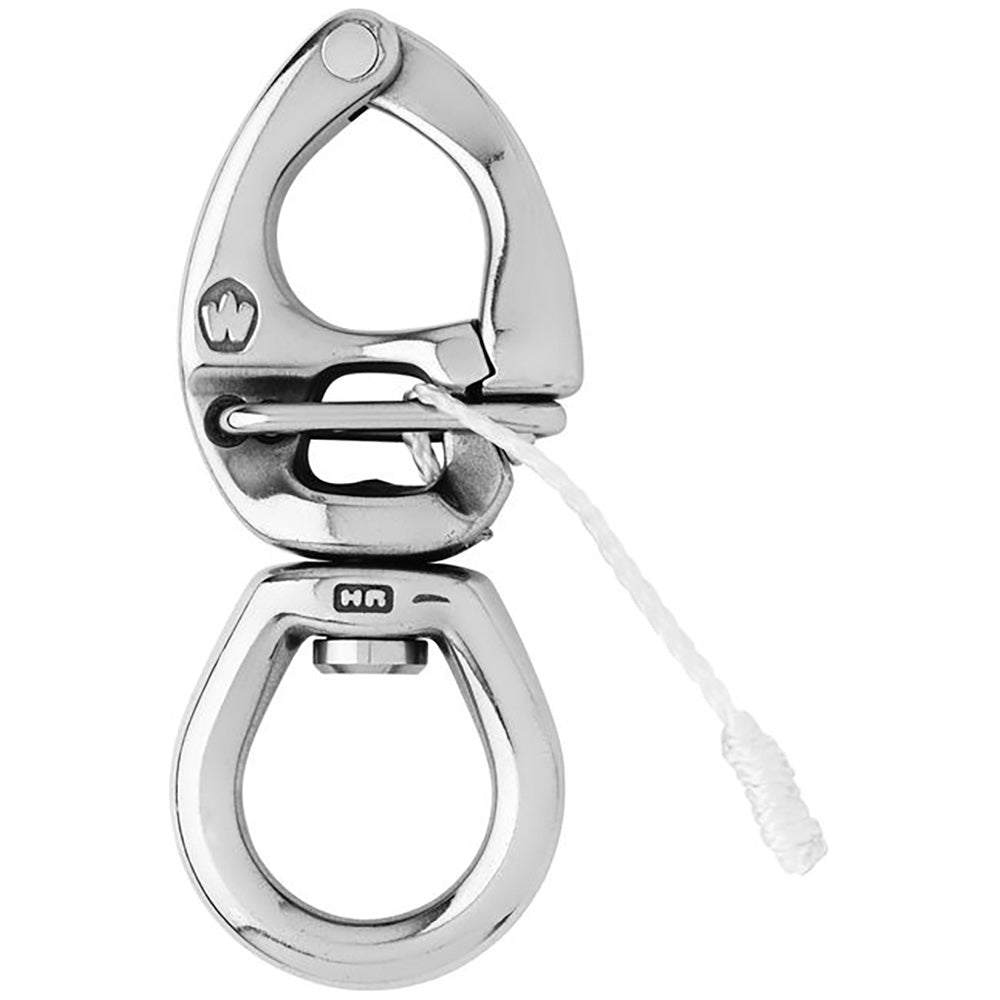

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 1940 / (kg) 880
- Breaking load: (lb) 2860 / (kg) 1300
- Weight: (lb) 0.119 / (g) 54

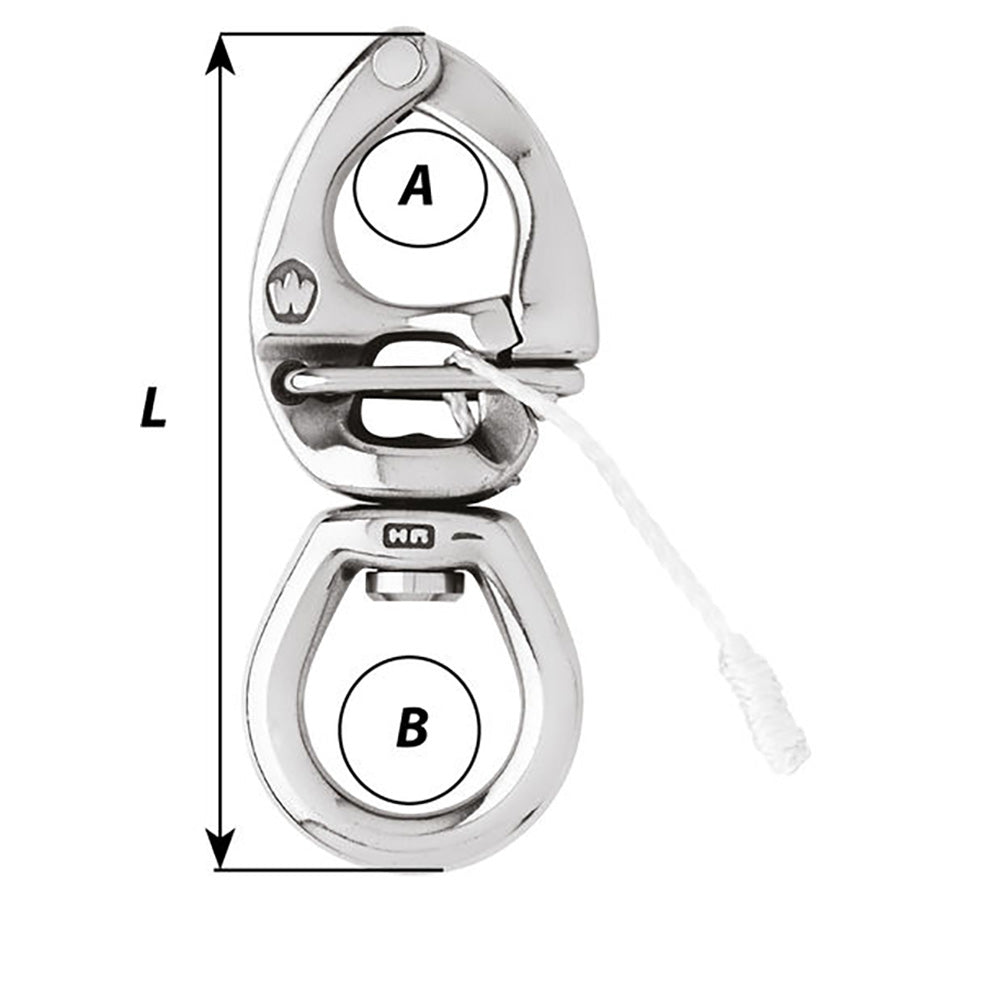

Dimensions:
- A: (inch) 35/64" / (mm) 14
- B: (inch) 3/4" / (mm) 19
- Length: (inch) 3 5/32" / (mm) 80
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
